New 380 Series Pressure/Vacuum Pumps

380 Series utilizing WOB-L® Piston Technology released for production

Gardner Denver Thomas is pleased to announce the release of our new 380 Series, a subset of the 2380 Series platform. The 380 Series air compressors are engineered to be a leader in size and weight for its performance class. These pumps are excellent solutions for a wide array of market applications, ranging from General market to specific Medical, Laboratory, Food and Beverage, or Industrial markets.

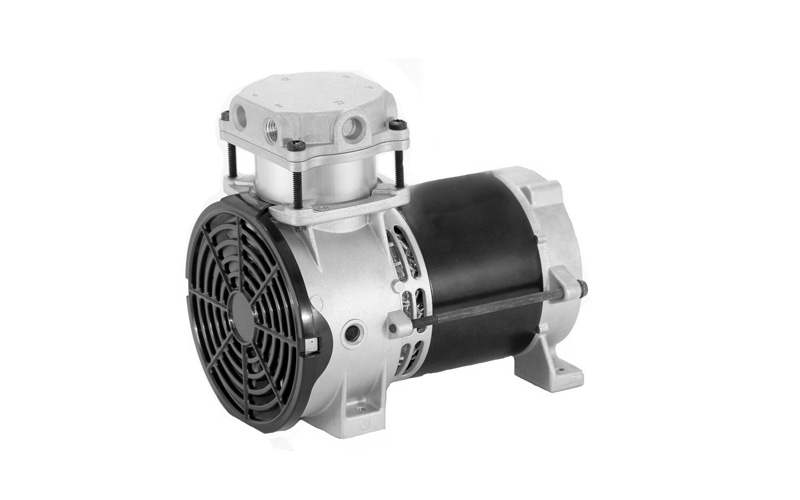

The 380CE32 (115/60/1) is UL approved and provides an open flow of 1.2 cfm (34.0 l/min) and can operate up to 100 psi (6.9 bar) continuously as well as a continuous maximum vacuum up to 89% of local barometer. It weighs just 9.7 lbs. (4.4 kgs) and measures (L x W x H) 6.94” (176.4 mm) x 5.14” (130.6 mm) x 6.73” (170.8 mm).

The 380CS32 (100/50/60/1) provides an open flow of 1.0 cfm (28.4 l/min) / 1.2 cfm (34.0 l/min) and can operate up to 60 psi (4.1 bar) continuously as well as a continuous maximum vacuum up to 89% of local barometer. It weighs just 9.95 lbs. (4.5 kgs) and measures (L x W x H) 8.40” (213.3 mm) x 5.14” (130.6 mm) x 6.73” (170.8 mm).

Units are RoHS, REACH compliant and include an integral 9 blade cooling air flow fan, conventional foot mount design, corrosion resistant wetted parts, and are assembled with quality die-cast aluminum components. Supplied standard is a capacitor, capacitor insulator boot, and intake filter.

Click to learn more: 380 Versatile Pressure/Vacuum Pump
