Part Number | Head Configuration | Max. Flow | Max. Pressure | Max. Vacuum | Motor Type | Nominal Voltage | Weight |
927CA18 | Pressure/vacuum | 1.24 cfm (35.1 l/min) | 40 psi (2.8 bar) | 81% | AC | 115V 60hz | 11 lb (4.9 kg) |
927CD18 | Pressure/vacuum | 1.15 cfm (32.6 l/min) | 40 psi (2.8 bar) | 81% | AC | 220V 50hz | 11 lb (4.9 kg) |

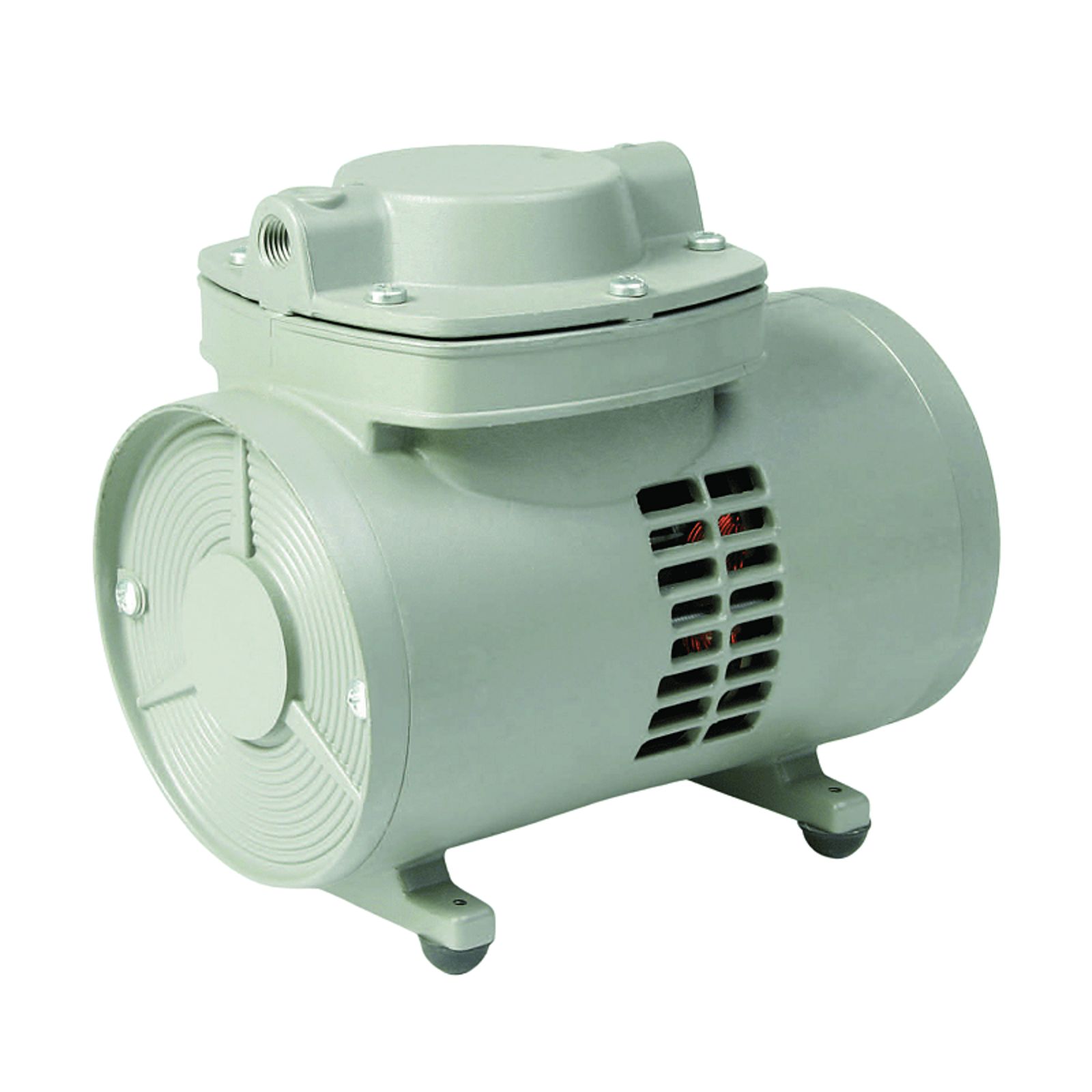

The Thomas 927 Series is a compact, oil-less diaphragm pump that delivers reliable pressure and vacuum performance with smooth, low-vibration operation for demanding medical, environmental, and industrial OEM applications
- Oil-less operation
- Permanently lubricated bearings
- Field service capability
- Stainless steel valves and aluminum valve plate
- Lightweight die cast aluminum head and diaphragm hold down plate
- Long-life diaphragm
- Inlet filter
- Balanced for smooth, low vibration operation
- 6 ft. grounded cord and plug
- 115 V, UL recognized motor and thermal protector
Key Specifications
Flow Rate (gas) (L/min)
35.1
L/min
Pressure (bar)
2.8
bar
Vacuum (mbar)
-807
mbar
- Aspirators
- Nebulizers
- Vacuum Frames
- Sewage Treatment
- Air Brushing
- Powder Spraying (Printing Machines)
- Stack Gas Samplers
- Water Sampling
- Fluid Dispensing
- Cake Decorating
