5313 Series - Diaphragm Pump

High end vacuum

Good aspiration performance
Valve system optimized for gas / liquid mixtures
Good reliability and durability with most common media
Flexible design for customized solutions

Key Specifications

Flow Rate (gas) (L/min)

2.2

L/min

Flow Rate (liquid) (mL/min)

530

mL/min

Pressure (bar)

0.5

bar

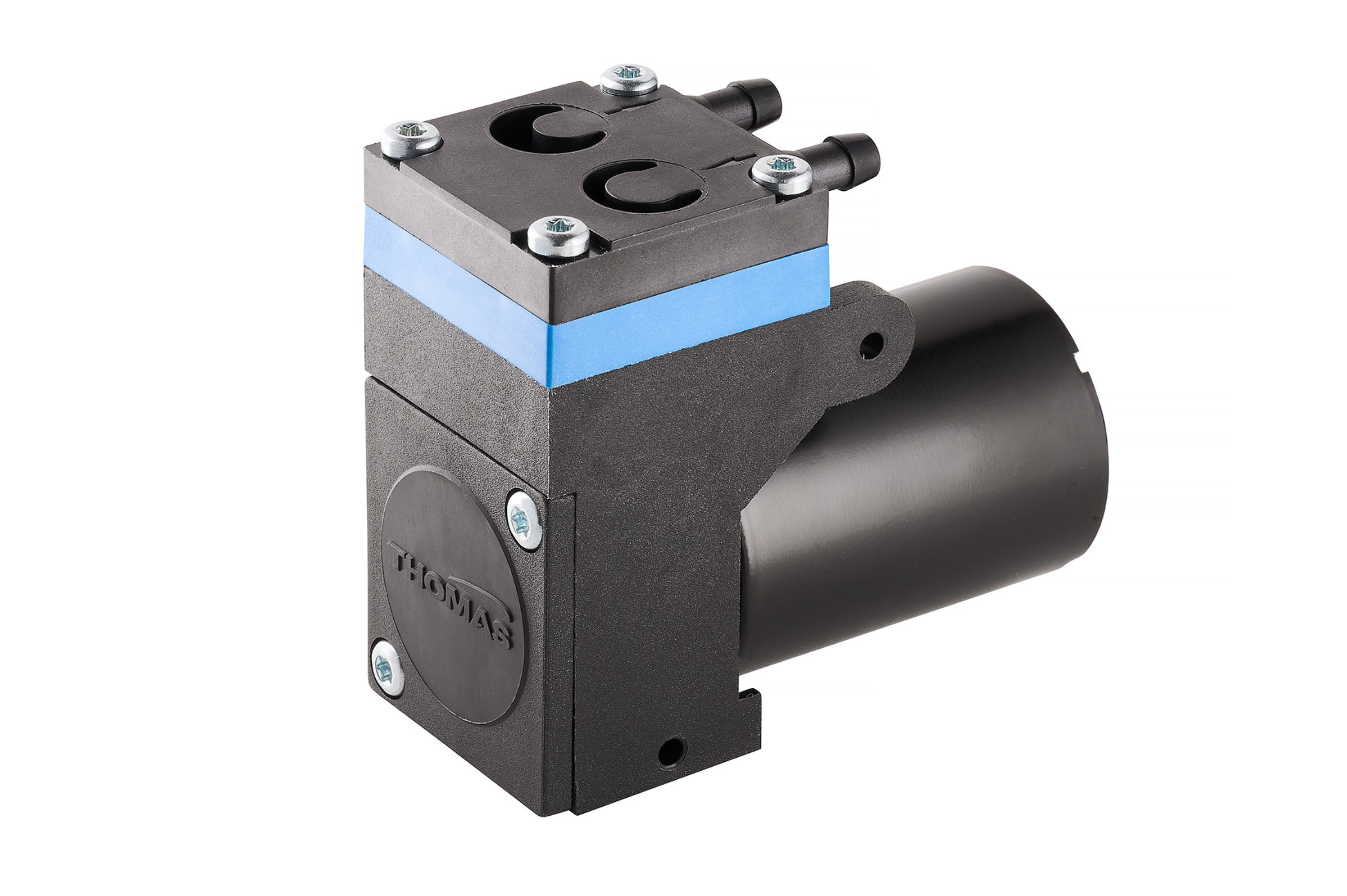

5313 Series BLDC Performance

Part Number	Head Material	Liquid Flow [ml/min]	Liquid Rated Pressure [mbarg] / [psig]	Vacuum dry [mbarg] / [psig]	Power Consumption @ Rated Pressure [W]	NominalVoltage [V]	Weight [g] / [lbs]
53130002	PPS / EPDM	470	500 / [7.3]	-800 / [-11.6]	7.5	24	165 / [0.36]
53130004	PPS / FKM	530	500 / [7.3]	-800 / [-11.6]	11	24	165 / [0.36]
53130102	PPS / EPDM	470	500 / [7.3]	-800 / [-11.6]	7.5	12	165 / [0.36]
53130104	PPS / FKM	530	500 / [7.3]	-800 / [-11.6]	11	12	165 / [0.36]

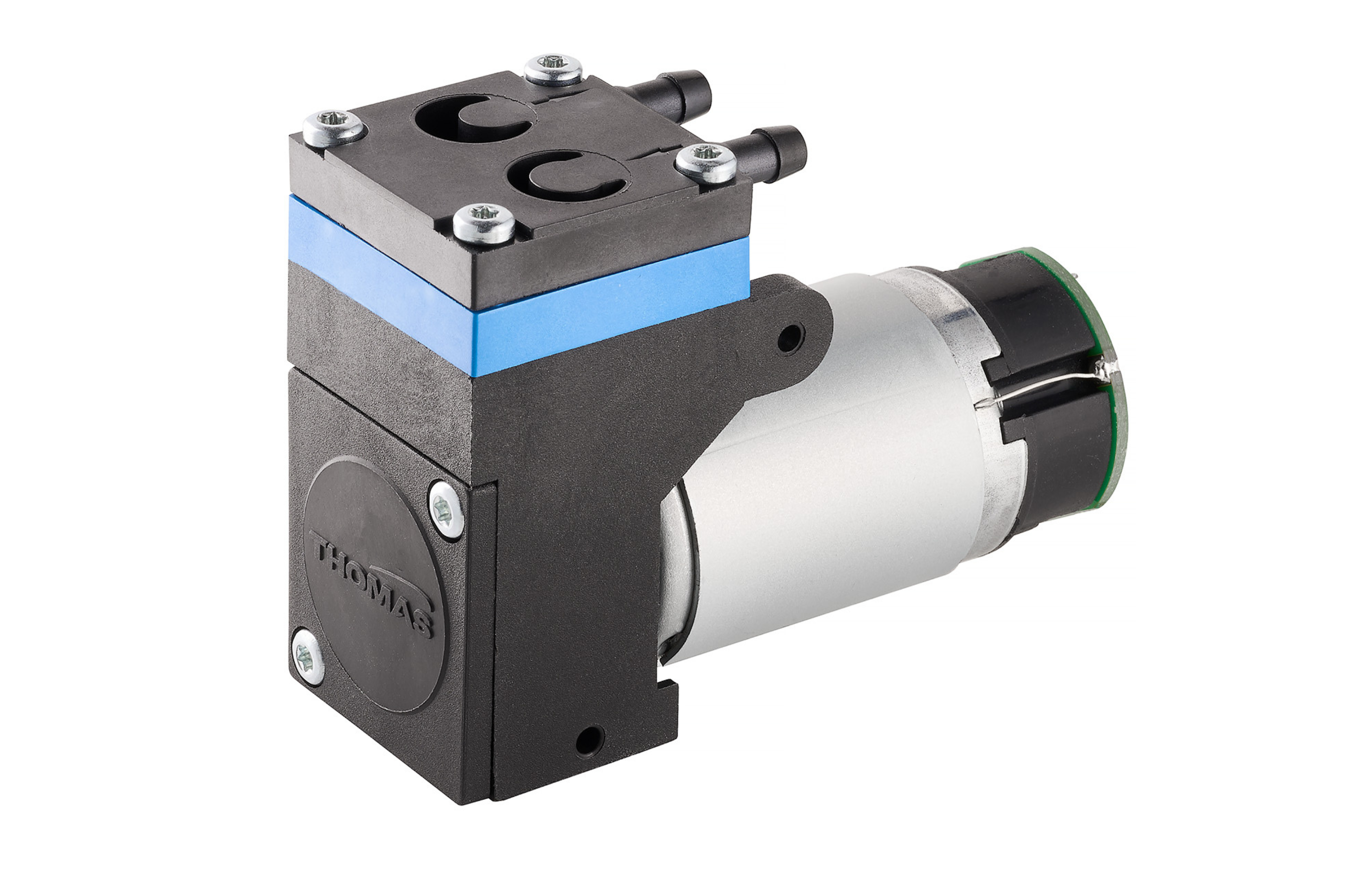

5313 Series DC Standard

Part Number	Head Material	Liquid Flow [ml/min]	Liquid Rated Pressure [mbarg] / [psig]	Vacuum dry [mbarg] / [psig]	Power Consumption @ Rated Pressure [W]	NominalVoltage [V]	Weight [g] / [lbs]
53130001	PPS / EPDM	260	500 / [7.3]	-800 / [-11.6]	4.7	24	185 / [0.41]
53130003	PPS / FKM	350	500 / [7.3]	-800 / [-11.6]	6.8	24	185 / [0.41]
53130101	PPS / EPDM	260	500 / [7.3]	-800 / [-11.6]	4.7	12	185 / [0.41]
53130103	PPS / FKM	350	500 / [7.3]	-800 / [-11.6]	6.8	12	185 / [0.41]

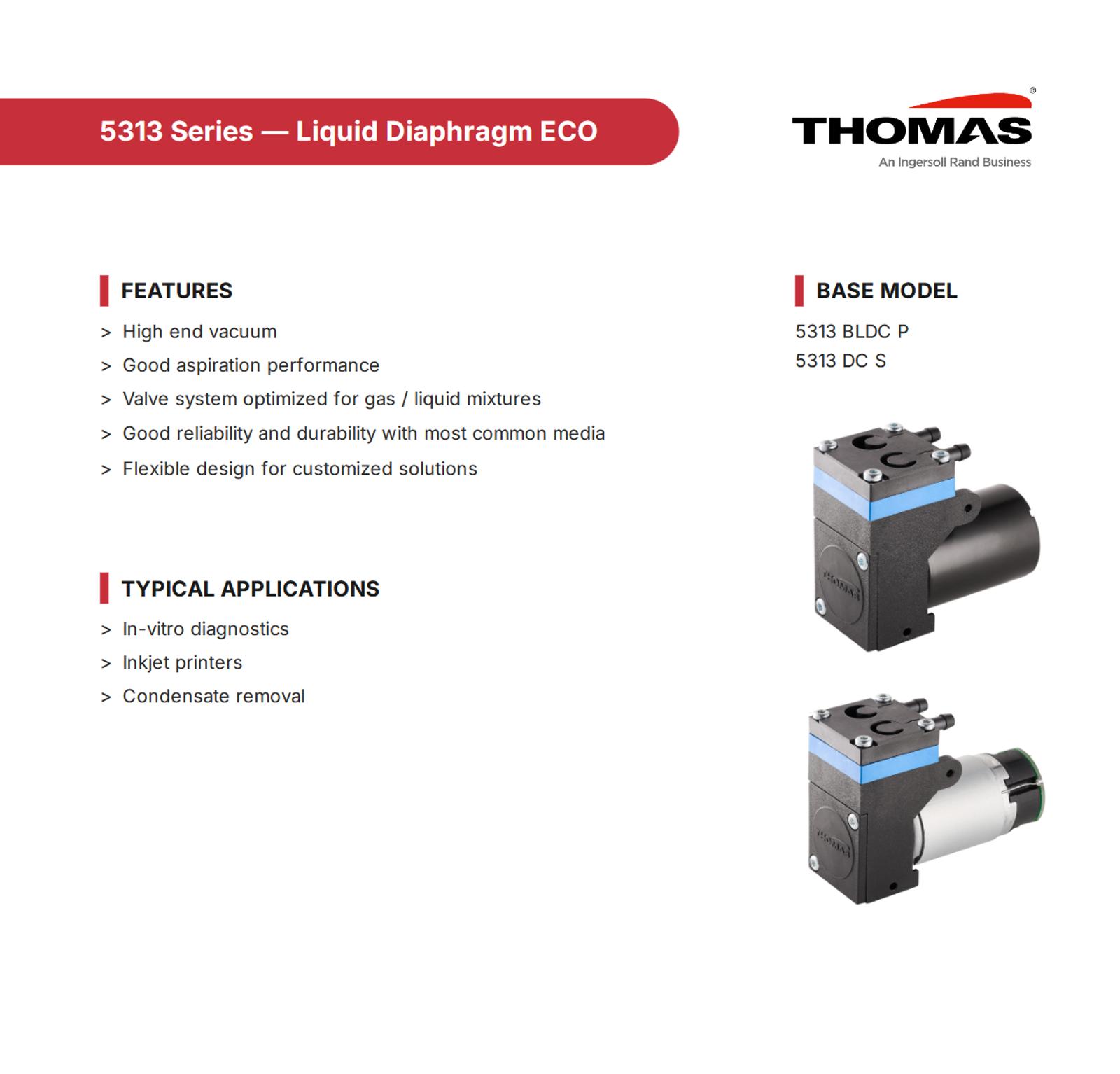

Screenshot 2026-07-17 133656.png

5313 Series Data Sheet
