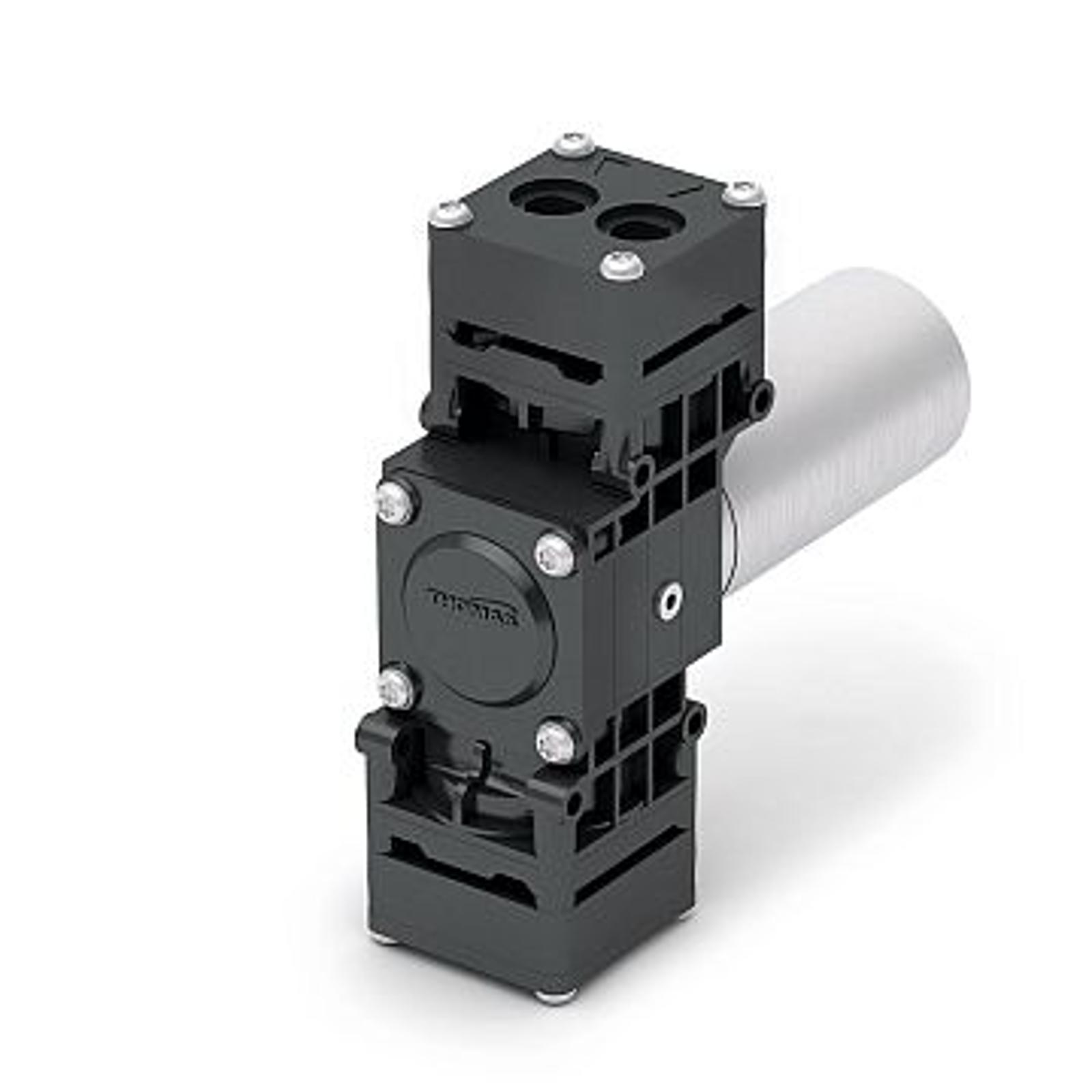

7006 Series - Diaphragm Pumps

The Thomas 7006 Series is a compact, oil-less diaphragm pump that delivers reliable pressure and vacuum performance with smooth, low-vibration operation for medical, laboratory, and industrial OEM applications.

Service free and oil-less
Compact design
Balanced for smooth, low vibration operation
Suitable for continuous running
Wetted parts:
- Heat resistant high performance plastic
- Elastomeric valves
- Long-life

Key Specifications

Flow Rate (gas) (L/min)

10

L/min

Pressure (bar)

2.5

bar

Vacuum (mbar)

-860

mbar

Part Number	Head Configuration	Max. Flow	Max. Pressure	Max. Vacuum	Motor Type	Nominal Voltage	Weight
70060050	Pressure/vacuum	0.265 cfm (7.5 l/min)	36.3 psi (2.5 bar)	85%	DC	12V	1.5 lb (0.66 kg)
70060052	Pressure/vacuum	0.265 cfm (7.5 l/min)	36.3 psi (2.5 bar)	85%	DC	24 V	1.5 lb (0.66 kg)
70060200	Pressure/vacuum	0.353 cfm (10.0 l/min)	36.3 psi (2.5 bar)	85%	Brushless DC	12V	1.5 lb (0.66 kg)
70060071	Pressure/vacuum	0.353 cfm (10.0 l/min)	36.3 psi (2.5 bar)	85%	Brushless DC	24 V	1.5 lb (0.66 kg)
70060054	Pressure/vacuum	0.530 cfm (15.0 l/min)	36.3 psi (2.5 bar)	85%	DC	12V	2 lb (0.9 kg)
70060055	Pressure/vacuum	0.530 cfm (15.0 l/min)	36.3 psi (2.5 bar)	85%	DC	24 V	2 lb (0.9 kg)
70060057	Vacuum	0.283 cfm (8.0 l/min)	N/A	95%	DC	12V	2 lb (0.9 kg)
70060058	Vacuum	0.283 cfm (8.0 l/min)	N/A	95%	DC	24 V	2 lb (0.9 kg)
70060201	Pressure/vacuum	0.636 cfm (18 l/min)	36.3 psi (2.5 bar)	85%	Brushless DC	12V	2 lb (0.9 kg)
70060016	Pressure/vacuum	0.636 cfm (18 l/min)	36.3 psi (2.5 bar)	85%	Brushless DC	24 V	2 lb (0.9 kg)
70060074	Vacuum	0.307 cfm (8.7 l/min)	N/A	95%	Brushless DC	12V	2 lb (0.9 kg)
70060073	Vacuum	0.307 cfm (8.7 l/min)	N/A	95%	Brushless DC	24 V	2 lb (0.9 kg)
