Part Number | Head Configuration | Max. Flow | Max. Pressure | Max. Vacuum | Motor Type | Nominal Voltage | Weight |
907CDC18 | Pressure/vacuum | 2.05 cfm (58.0 l/min) | 30 psi (2.1 bar) | 76% | DC | 12V | 6.5 lb (2.9 kg) |
907BDC22 | Vacuum | 1.80 cfm (51.0 l/min) | N/A | 85% | DC | 12V | 6.5 lb (2.9 kg) |

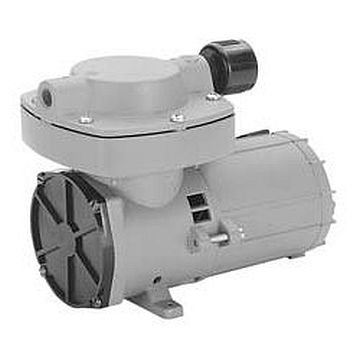

The Thomas 907 Series diaphragm pumps and compressors deliver reliable oil-less pressure and vacuum performance in a compact, durable design for demanding medical, laboratory, and industrial OEM applications.
- Oil-less operation
- Permanently lubricated bearings
- Stainless steel valves and lapped aluminum valve plates
- Lightweight die cast aluminum heads and diaphragm hold down plates
- Long-life diaphragm
- Inlet filter
- Balanced for smooth, low vibration operation
Key Specifications
Flow Rate (gas) (L/min)
60
L/min
Pressure (bar)
2.1
bar
Vacuum (mbar)
-817
mbar
- Aspirators
- Nebulizers
- Vacuum Frames
- Sewage Treatment
- Air Brushing
- Powder Spraying (Printing Machines)
- Emergency Vehicles (Suction)
- Computer Tape Drives
- Foam Markers
- Fertilizer Mixing
