Part Number | Head Configuration | Max. Flow | Max. Pressure | Max. Vacuum | Motor Type | Nominal Voltage | Weight |
910CDC22/12 | Pressure/vacuum | 1.97 cfm (55.8 l/min) | 25 psi (1.7 bar) | 83% | DC | 12V | 8.25 lb (3.7 kg) |

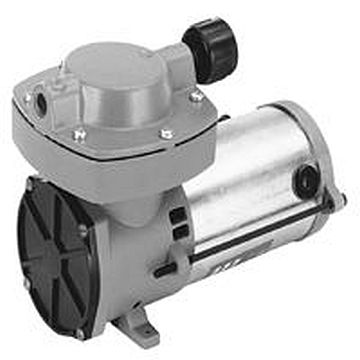

The Thomas 910 Series is a compact, oil-less diaphragm pump that delivers reliable pressure and vacuum performance for demanding medical, industrial, and environmental OEM applications.
- Oil-less operation
- Permanently lubricated bearings
- Stainless steel valves and lapped aluminum valve plates
- Lightweight die cast aluminum heads and diaphragm hold down plates
- Long-life diaphragm
- Inlet filter
- Balanced for smooth, low vibration operation
Key Specifications
Flow Rate (gas) (L/min)
55.8
L/min
Pressure (bar)
2.8
bar
Vacuum (mbar)
-824
mbar
- Aspirators
- Nebulizers
- Vacuum Frames
- Sewage Treatment
- Air Brushing
- Powder Spraying (Printing Machines)
- Emergency Vehicles (Suction)
- Computer Tape Drives
- Foam Markers
- Fertilizer Mixing
